Locks, Straps, Brackets, Spacers, and Other Rack Setup Accessories

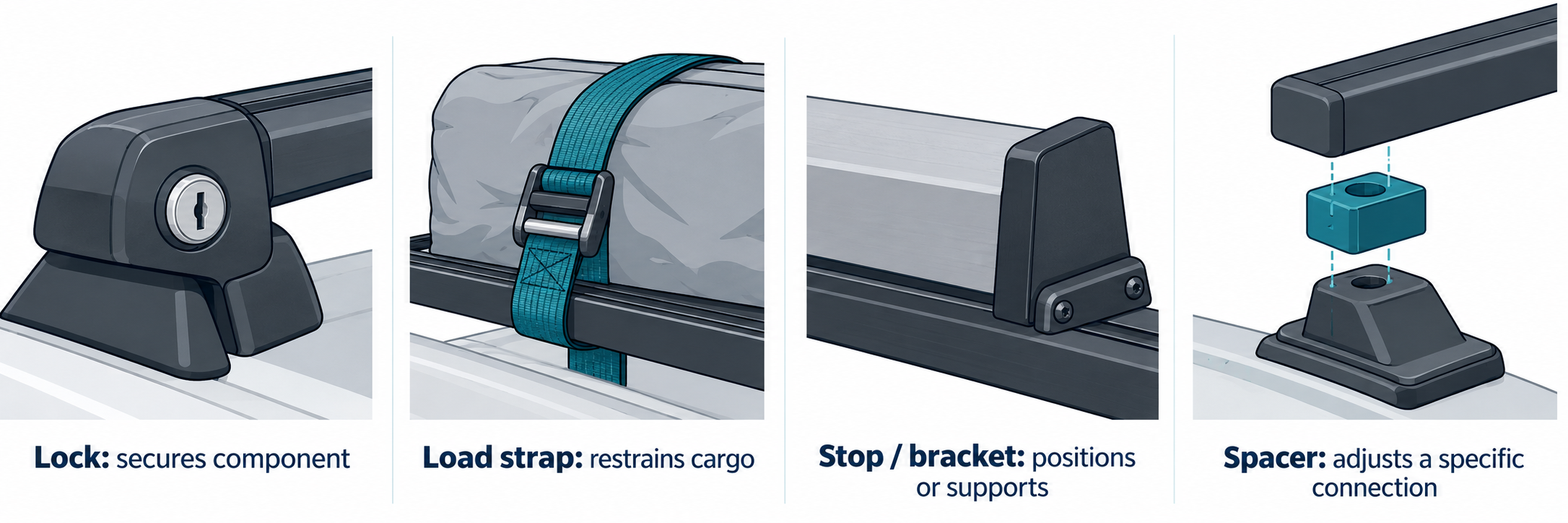

Rack accessories can look similar while doing very different jobs. A lock secures a component to a compatible housing. A tie-down strap restrains cargo. A stop or bracket positions a load or provides an attachment point. A spacer changes how named components meet. Choose by function first, then verify the part against the exact rack and accessory.

Identify the job before choosing a part

Need	What the part does	What to check
Keyed-alike access	Replaces or coordinates lock cylinders in a compatible product family	Brand, receiving product and generation, core or key identity, and the maker’s replacement instructions
Cargo restraint	Holds a load to a base rack or carrier	Approved strap and routing, cargo shape, rack and vehicle instructions, and all applicable limits
Accessory positioning	A stop or bracket helps locate or support a named load	Supported bar or platform, required separate straps or hardware, installation method, and any stated accessory limit
Fit adjustment	A spacer, shim, or bracket changes a product-specific connection	Exact part number, product generation, orientation, clearance, and instructions

Locks do not replace cargo restraint

Thule’s One-Key System model 450400 is a four-cylinder set that uses one key and is intended to replace locks in Thule products. Yakima’s SKS 8007202 package is a separate two-core product for Yakima lockable accessories. Yakima says the core numbers in prepackaged sets cannot be selected; matching an existing key requires its separate ordering path. Neither product listing establishes compatibility with another brand’s lock housing or promises theft prevention.

Identify the receiving product before ordering a core. A matching key shape or brand name is not a complete model-and-generation check. Keep the operating lock and the cargo tie-down as separate parts of the setup.

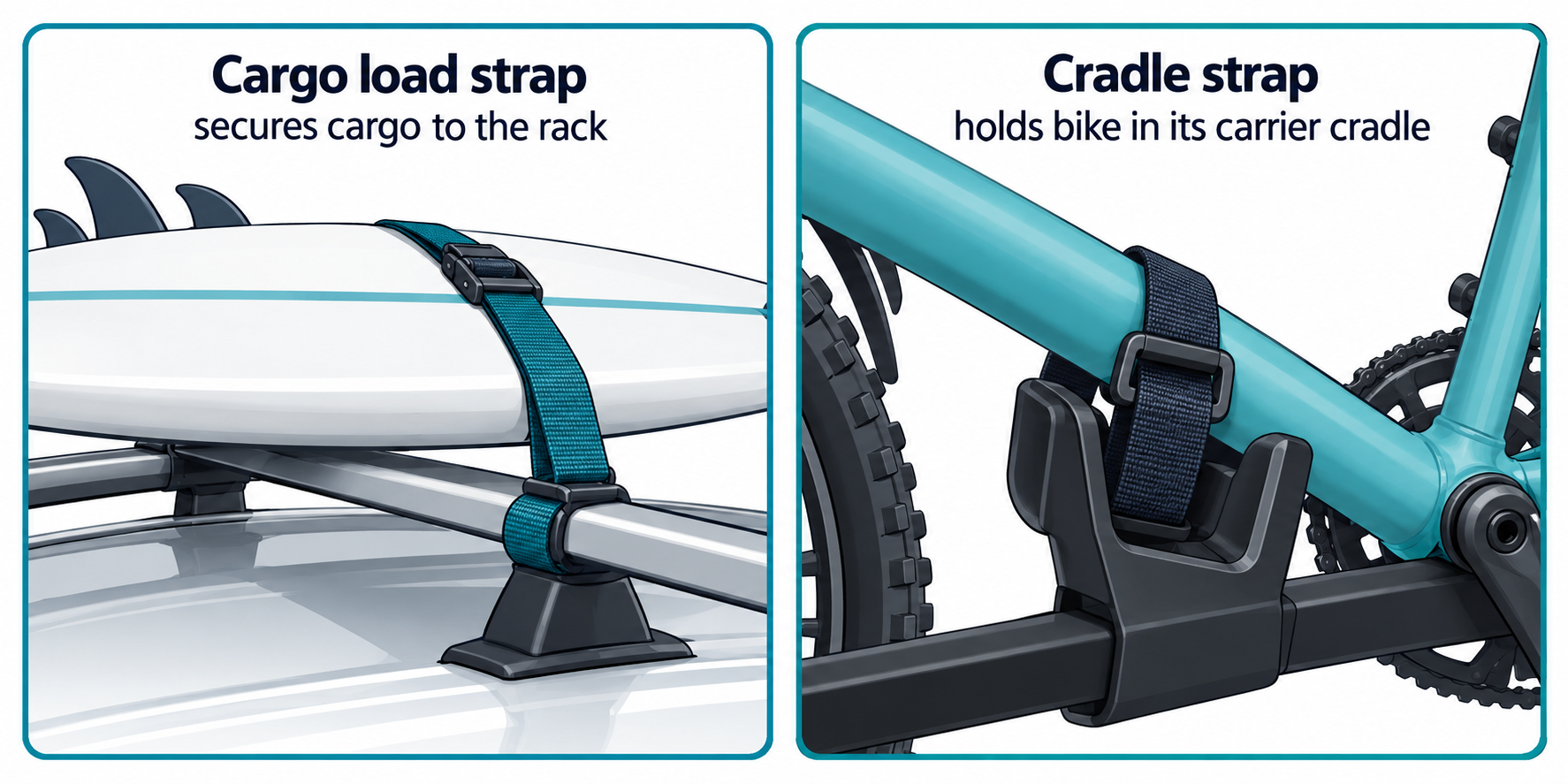

Distinguish load straps from replacement straps

Thule describes its 521101 pair of 9-foot load straps for securing smaller items such as surfboards, but the product page does not give a cargo-specific routing procedure or strap capacity. Rhino-Rack lists a 225 kg lashing capacity for its RTD3 strap. That figure describes the strap’s lashing specification; it is not the vehicle roof limit, a cargo allowance, or approval for a particular load and rack.

A replacement strap for a carrier cradle may serve another purpose entirely. Thule’s 534500 Accessory Strap Kit is for Thule or other-brand bike cradles with protruding attachment knobs on both sides. Its product page does not identify every compatible cradle model. Do not treat these cradle straps as roof-cargo tie-downs.

Use the load and carrier instructions to determine the correct restraint arrangement. Product descriptions alone may not state the number of straps, route, tension, or suitability for a particular cargo shape.

Stops and brackets still need a complete setup

A load stop can help position a load, but it does not replace the straps and instructions needed to secure that load. Thule’s current Aero Load Stop 502 page directs users to separate Thule load straps and explicitly says the stop is not compatible with WingBar Evo. Check the current bar list and exclusions for the exact product before purchasing.

Brackets and spacers are also product-specific. Confirm the exact bar or platform, accessory model, required base hardware, and any clearance or load conditions. Do not transfer a torque value, load rating, or mounting method from one bracket to another.

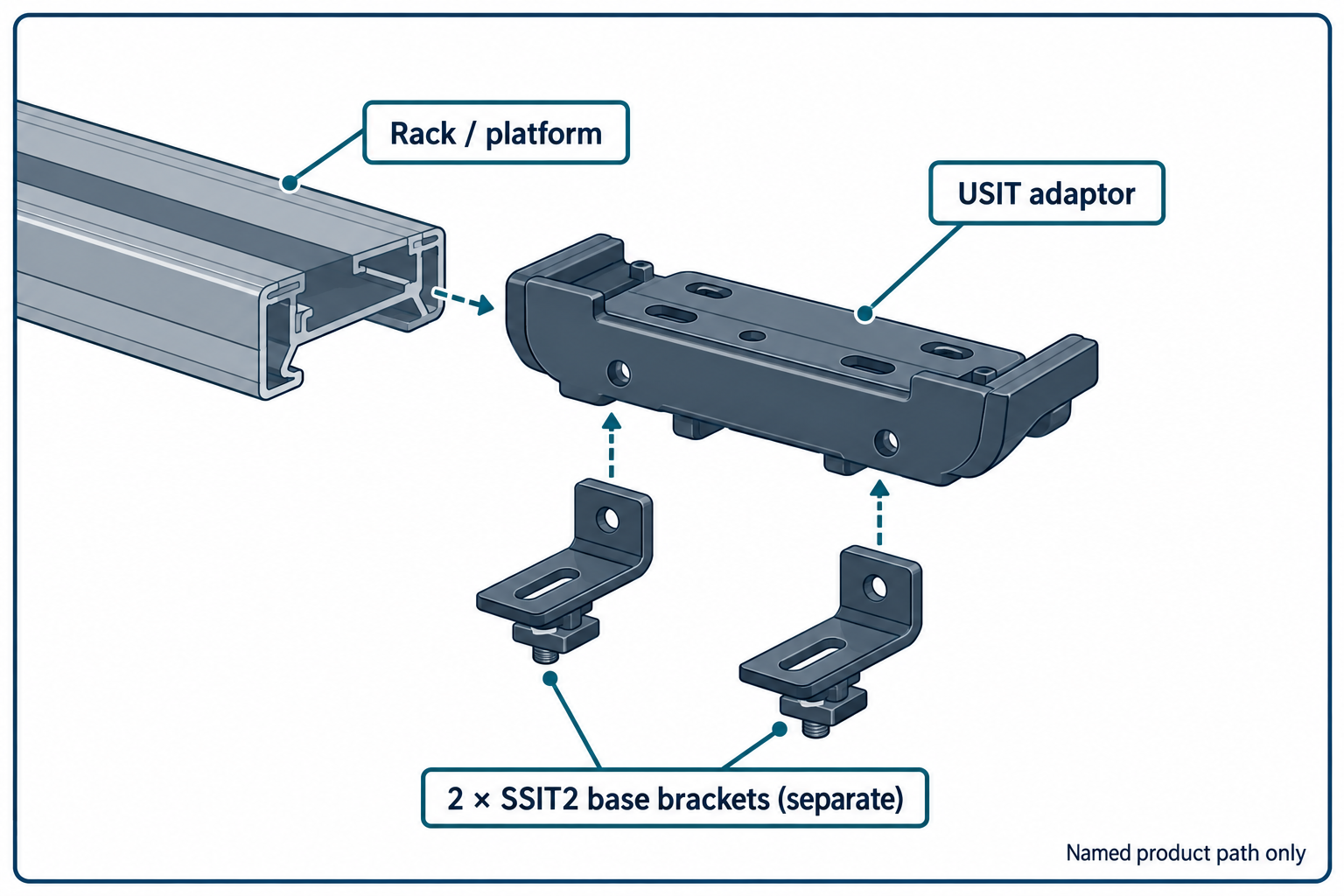

Rhino-Rack’s US STOW iT Universal Adaptor (USIT) is one example of a separately based bracket path: the manufacturer says it requires two STOW iT base brackets (SSIT2), purchased separately. Its stated maximum of 20 kg (44 lb) applies to the adaptor pair, not the vehicle roof or complete rack system. The linked Issue 02 instructions are dated 24 May 2023 and say to check for the latest issue. Confirm the exact rack and accessory and use current instructions before purchase or installation.

Before installing or driving

• Confirm the accessory’s exact model and the product family that receives it.
• Check which pieces are included and which must be purchased separately.
• Read the current instructions for the vehicle, base rack, accessory, and cargo.
• Keep lashing capacity, accessory rating, rack limit, and vehicle roof limit distinct; the lowest applicable limit controls.
• Check the installed hardware and load as the relevant manufacturers instruct.

When the receiving part or the correct instructions cannot be identified, pause and ask the product maker or an authorized fitter. Do not improvise a strap route, lock fit, or bracket connection.
