Rack Systems for DiamondBack HD and SE Covers: Fitment and Load Checks

DiamondBack HD and SE covers have rack paths built around the cover itself. They are not ordinary pickup-bed clamps, and a rack listing for one cover does not confirm the fit of another cover or truck. Start with the exact truck and cover model, then confirm the rack system, track placement, installation instructions, and every applicable load limit.

Cover-mounted rack systems and a separate tent accessory

Listed system	What the manufacturer describes	What still needs confirmation
Front Runner × DiamondBack, three-load-bar system	The current product page names DiamondBack HD and SE covers and lists six individual tracks, track-mounted legs, and 58-inch T-slot load bars. Its “Hauling Capacity” field says 660 lb alongside a 4–5-person rooftop-tent description.	The page does not resolve a particular truck, bed, cover generation, or effective vehicle-and-rack load. It does not define 660 lb as a driving or stationary rating.
DiamondBack × Yakima SkyLine HD	The page lists a fixed 3-inch height and 220 lb dynamic / 600 lb static ratings. The component path is 24.5-inch DiamondBack × Yakima Base Track, four Skyline Towers, four HD Bar Skyline Adapters, four Landing Pad 26 units, and two HD Bars.	Verify the exact cover, truck, bar length, instructions, and same-condition limits. The product rating is not a vehicle load allowance.
DiamondBack × Yakima OutPost HD	The page lists a fixed 13-inch height, 300 lb dynamic / 1,200 lb static ratings, and 53 lb system weight. Its components are the OutPost HD rack, two HD Bars, 24.5-inch DiamondBack × Yakima Base Track, and Yakima Bed Track Kit 2.	Verify the exact cover, truck, bar length, installation instructions, and same-condition limits. The product page does not establish usable cargo capacity for a vehicle.
DiamondBack × Yakima OverHaul HD	The page lists an adjustable 19–30-inch height, 300 lb dynamic / 1,200 lb static ratings, and 82 lb system weight. Its components are the OverHaul HD rack, two HD Bars, 24.5-inch DiamondBack × Yakima Base Track, and Yakima Bed Track Kit 2.	Verify the exact cover, truck, bar length, installation instructions, and same-condition limits. The product page does not establish usable cargo capacity for a vehicle.

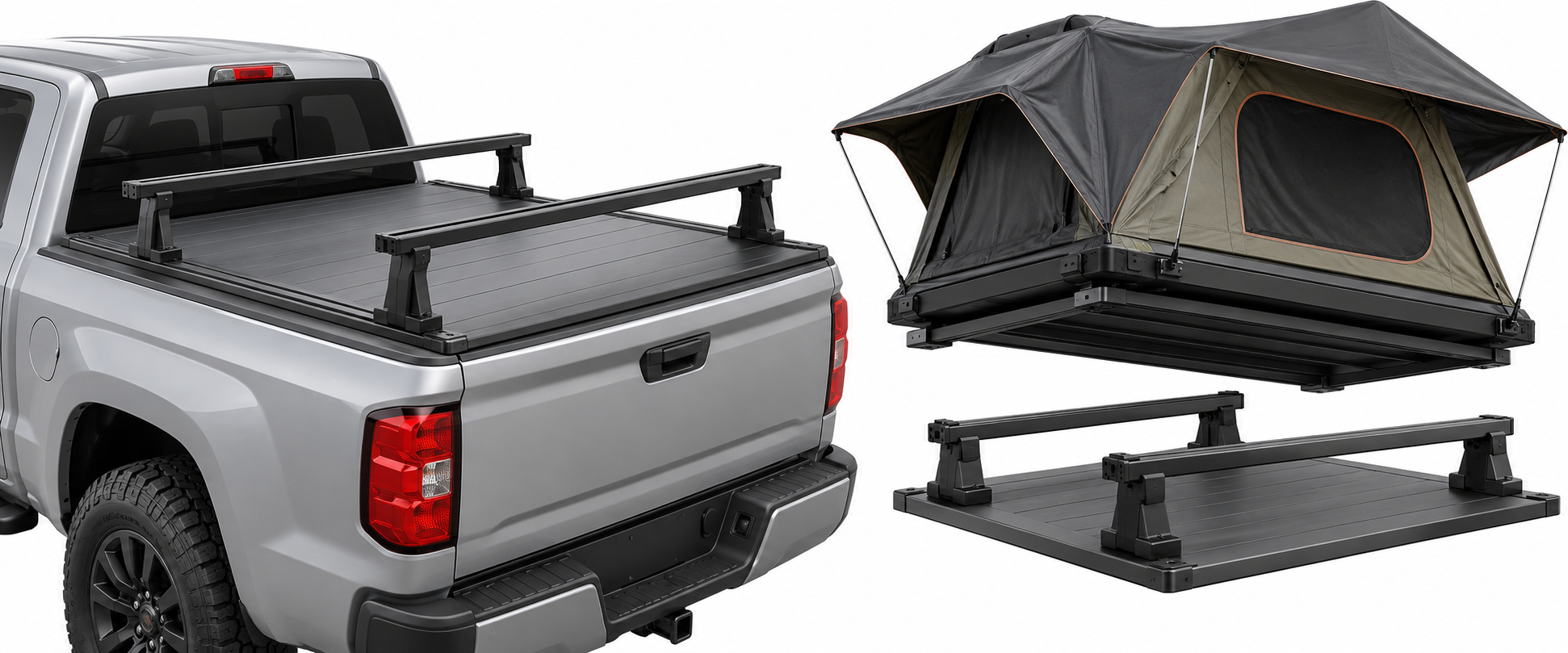

Yakima SkyPeak HD Crossbar Kit	This is a separate accessory intended for use with the SkyPeak HD rooftop tent, not an underlying cover-mounted rack. The listing gives 165 lb with the tent closed and 75 lb with it open.	The page does not label those figures as static or dynamic limits. Do not apply them to general cargo, another tent, or the cover rack beneath the tent.

The DiamondBack × Yakima Base Track Kit page names OverHaul HD and OutPost HD as its direct rack paths. It says a SkyLine HD system needs additional Skyline Towers, HD Bar Skyline Adapters, and Landing Pad 26 units. Use the complete component path listed for the selected system; do not assume parts are interchangeable. DiamondBack lists the OutPost and OverHaul system weights above but does not explain in those product fields whether the rating includes rack mass, so do not calculate remaining cargo by assumption. These product pages describe specific cover and accessory combinations, not a universal fit result. Their HD/SE compatibility does not identify the exact truck, bed, cover generation, or installed track layout. The listed storefront pages also do not establish availability or an approved fit in every market. Verify the market, exact application, and current instructions before ordering.

The current Yakima system pages warn that 2022-up Ford Mavericks need the track trimmed to fit the cover panels. They also say not to use factory etch marks beneath covers received before March 15, 2024. These are installation-specific warnings, not vehicle-fit approval; check the instructions supplied for the exact cover and kit before trimming or drilling.

Check the cover interface before installation

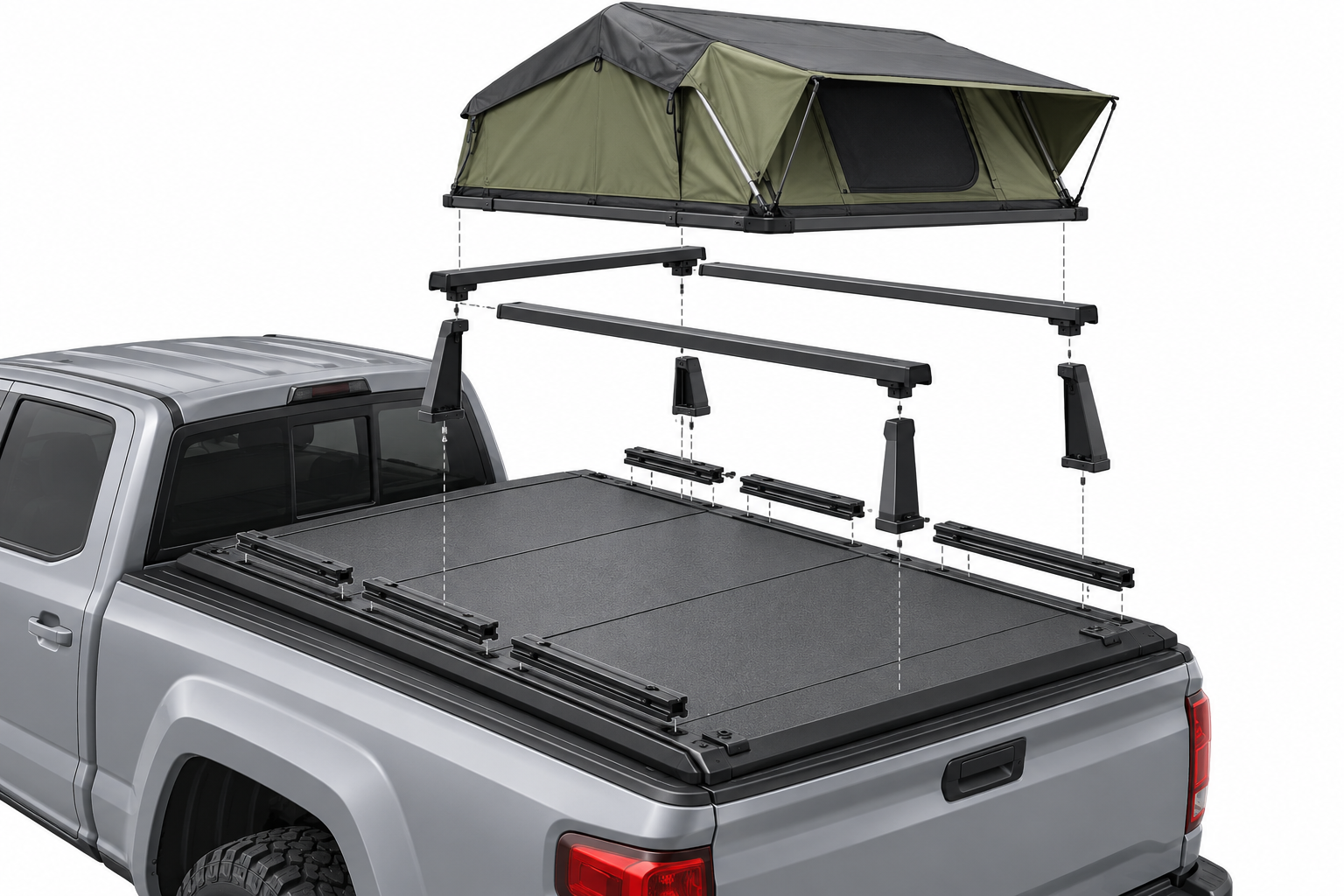

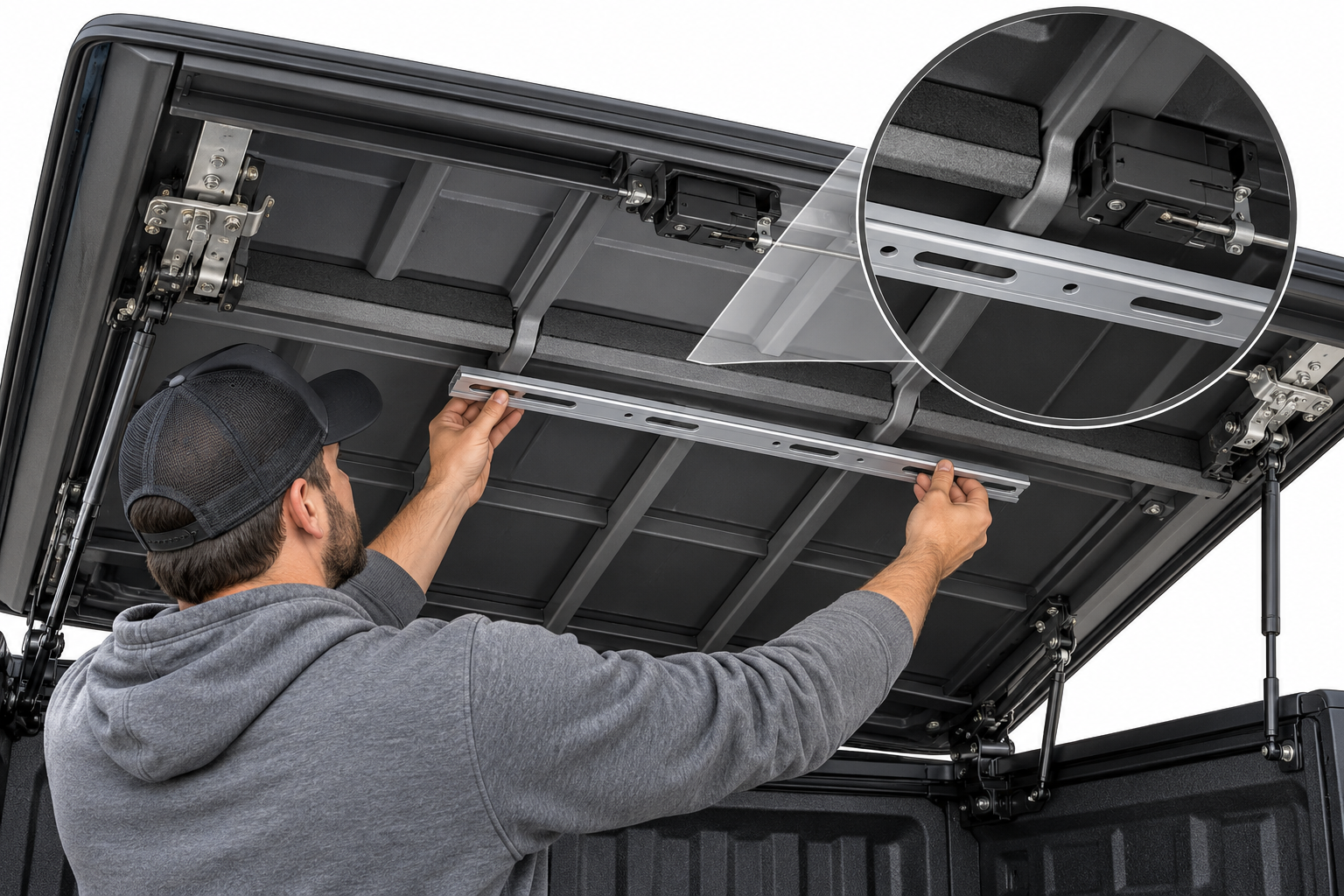

The Front Runner installation guide shows a track-mounted assembly on the DiamondBack cover. It calls for checking track placement before drilling, inspecting the underside for obstructions, and following the supplied fastening and sealing instructions. The guide warns that its rack-kit rating may exceed the vehicle manufacturer’s stated roof rating. For this bed-cover installation, confirm with the vehicle and cover manufacturers which limits govern; do not assume a roof figure is a bed-load allowance. Use the current instructions supplied for the selected kit and cover; do not copy a hole location or hardware choice from a different cover or guide revision. DiamondBack also describes a factory track-installation option, but its page notes that tracks are not placed on the cover’s center panel.

Before work begins, confirm the cover model and generation, the truck’s year and bed configuration, the intended bar or tent system, and any factory-installed tracks. If the guide requires drilling and you cannot verify the underside, track position, or approved attachment, have the manufacturer or a qualified installer confirm the setup. A rack product page is not permission to modify an unverified cover.

Treat load figures by their exact labels

Do not turn an ambiguous product-page number into a vehicle load recommendation. The Front Runner page’s “Hauling Capacity” entry gives 660 lb alongside a rooftop-tent description without saying whether the number is for driving or stationary use. The SkyPeak listing labels 165 lb and 75 lb by whether the tent is open or closed, but does not define them as dynamic or static ratings. Neither label replaces the vehicle, cover, rack, mounting, tent, or cargo instructions.

Use the current instructions to determine which components and weights are included and which operating condition a limit covers. Compare only figures that describe the same condition, and follow the lowest applicable limit once its scope is clear. If a source does not explain whether rack or accessory mass is included, do not calculate a remaining cargo allowance by assumption. Ask DiamondBack, the rack maker, or the vehicle maker to clarify before loading.

Verify the whole setup

Before buying or carrying gear, confirm:

• The exact truck, bed, and DiamondBack cover model are supported together.
• The selected rack listing names that cover and the intended bar or tent system.
• Track positions, panel hardware, clearances, and installation steps match the current instructions for that kit.
• Every vehicle, cover, mount, rack, accessory, and cargo limit is known for the same use condition.
• The load is secured and inspected using the instructions for the selected rack and the market where the vehicle will be used.

If any part of the fit or load path remains undocumented, treat the combination as unverified until the responsible manufacturer confirms it.

For the wider pickup-bed and tonneau-cover selection process, see Pickup-Bed Rack Fitment.
