Kayak Carrier for a 2024 Toyota RAV4 With Factory Rails

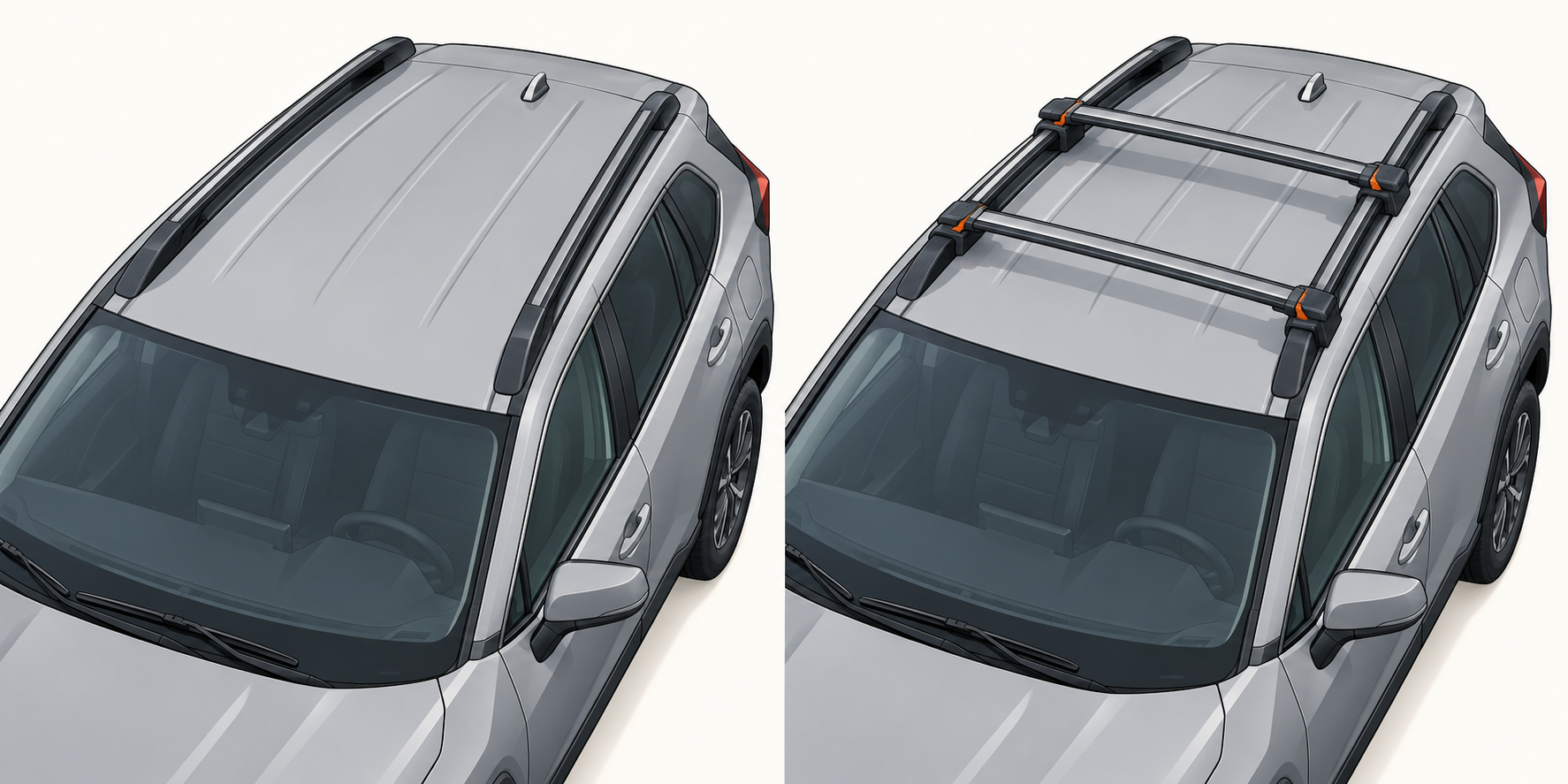

“Factory rails” is not enough information to confirm a kayak-carrier fit. The available US-market sources identify particular Toyota crossbar products and trim prerequisites, but they do not establish one carrier-and-kayak setup for every 2024 RAV4. First determine whether the vehicle has rails, crossbars, or both, then verify the exact trim, production details, bar model, carrier, and watercraft.

What Toyota’s crossbar pages establish

Toyota’s genuine crossbars PT278-42151 are described as providing up to 100 lb of cargo capacity when evenly distributed across both bars. The same US product page says RAV4 LE gas models need optional roof rails to purchase those crossbars, while RAV4 XLE gas models require one of three named option packages. The product rating is for those crossbars; it is not a complete roof-load allowance or proof that a kayak carrier attaches to them.

Toyota also lists a separate Adventure-model crossbar, PT278-42191, that mounts directly to the roof rails and is described as helping secure outdoor gear such as kayaks and SUPs. Toyota’s page says that part is not available on RAV4 Hybrid models. It does not identify every model year, trim, bar geometry, or kayak-carrier combination that will fit. Do not apply either product path to a vehicle until the part’s application is confirmed for that exact vehicle.

Use the manual that matches the vehicle

Toyota’s manual selector distinguishes market and production details for 2024 RAV4 manuals, including different production periods. A single model year therefore does not identify the correct manual in every case. Select the manual for the vehicle’s market and production configuration before using a roof-load figure.

One US 2024 RAV4 manual representation, OM42869U, states a maximum cargo weight of 101.9 lb (46.2 kg) on the roof luggage carrier. This is the value in that manual representation, not a universal rating for every 2024 RAV4, crossbar, or market. It does not establish that a particular carrier fits. Confirm the applicable manual and follow its definition of roof load. Reconcile that limit with the crossbar and carrier instructions; where the instructions include the bar, carrier, or other accessories in the roof load, count those weights as directed.

Verify a carrier against the actual bars

After confirming the base rack, compare it with a named carrier’s exact interface and instructions. For example, the US Thule Hull-a-Port Aero 849000 is listed for one kayak and has a 75 lb carrier capacity. Thule describes a direct T-track path on WingBar Evo or AeroBlade bars; a SquareBar path requires its adapter. Those statements describe Thule’s named bar paths. They do not establish that the Aero fits a particular RAV4 or Toyota crossbar.

Thule’s vehicle guide can be used to enter vehicle details or an existing roof rack. Review the result for the exact market and roof configuration, then follow the current vehicle-specific installation instructions. If the selector gives no confirmed result, do not read that as either automatic approval or a definitive “no fit”; confirm the exact combination with Toyota, Thule, or a qualified fitter.

Check the kayak and the complete load

Measure the kayak’s weight and widest point, and check its support areas against the carrier instructions. Confirm the required front-to-rear bar spread, usable bar length, adapter, straps, and bow/stern attachment path. Also check hatch and roof clearance with the kayak in its installed position. A carrier’s capacity applies to the carrier; it does not override a lower Toyota or crossbar limit.

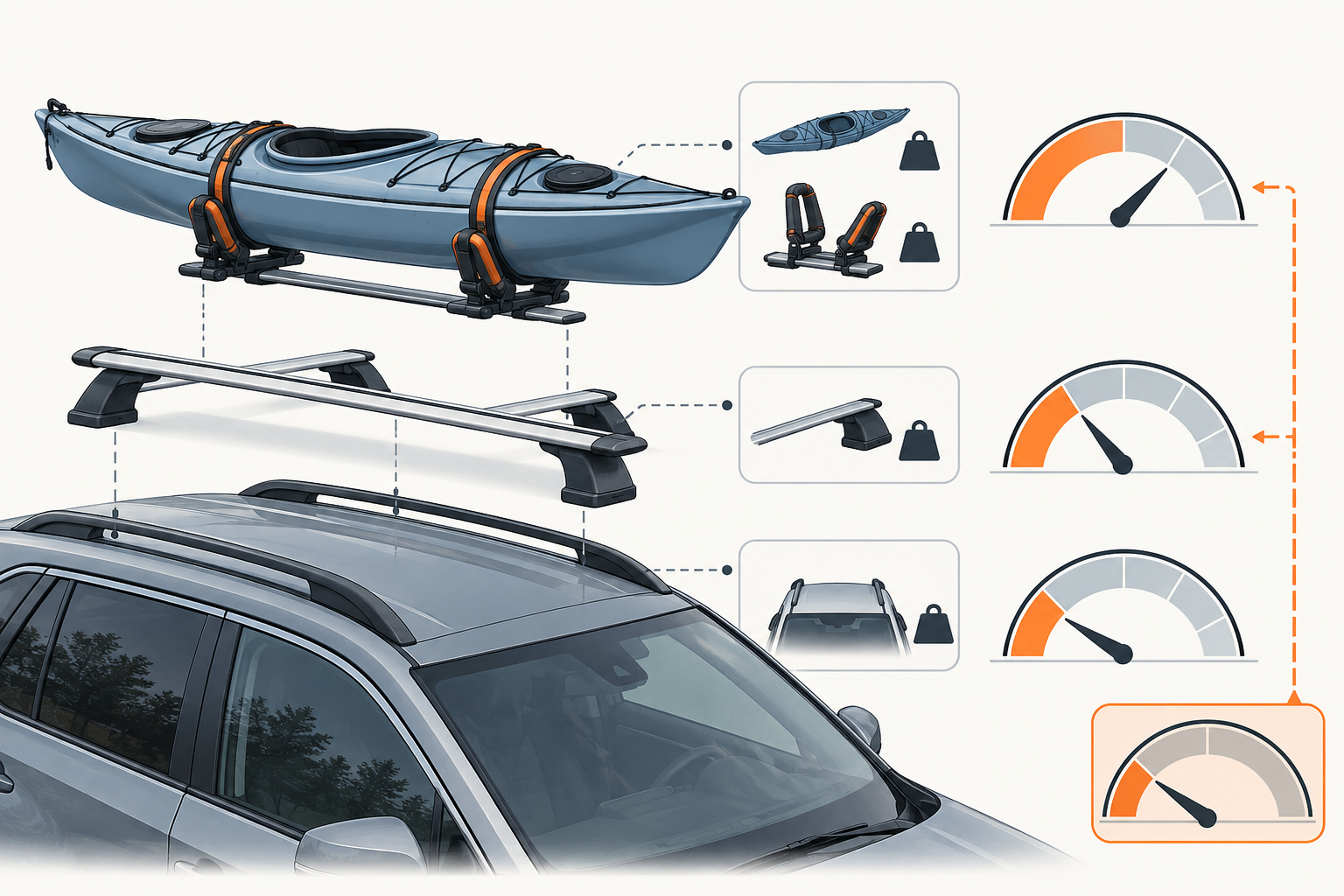

Use the exact vehicle manual and product instructions to work out the allowable loaded setup. Do not treat Toyota’s 100 lb crossbar product figure, the manual’s roof-cargo figure, or a carrier’s maximum as interchangeable. The applicable lower limit controls, and the calculation must follow each source’s definition of what weight is included.

Before buying or driving

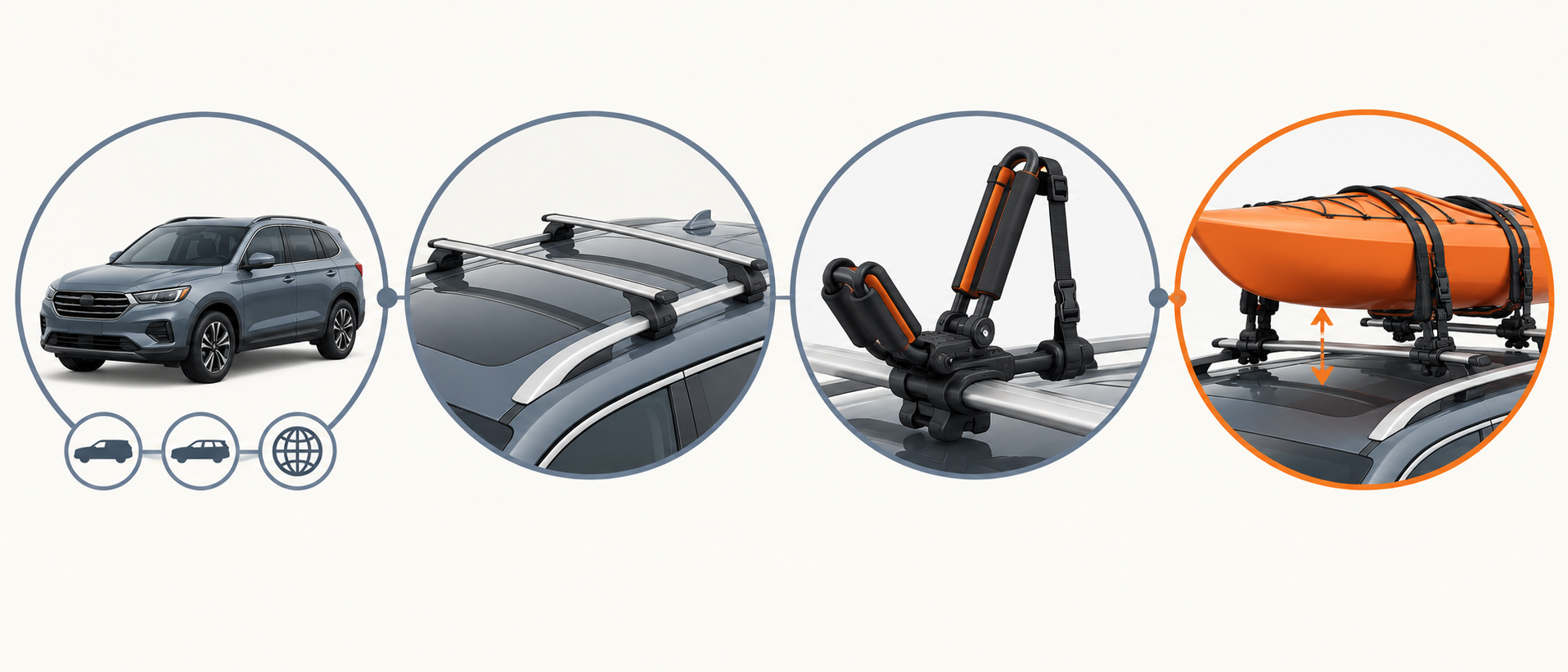

Record the RAV4 market, year, trim and powertrain, production details when the manual selector asks for them, roof rails, and any installed crossbars. Verify the Toyota part number, carrier SKU and current vehicle-selector result. Then compare the kayak dimensions, carrier and bar instructions, total load, and approved tie-down points. If any of these are unknown, the combination remains unverified. Use the pre-trip fit and securement checklist before loading, and the loading guide for carrier-specific restraint procedures.

This article summarizes US Toyota sources. Canadian and UK vehicle parts, manuals, terminology, and product applications require their own market-specific confirmation.
