Rhino-Rack Pioneer 6 Platform Selection

Pioneer 6 is a platform family with multiple sizes and vehicle attachment systems. Start with the rack location—vehicle roof, backbone, pickup cap or topper, or another named mounting surface—then select a platform and fitting parts that the current Rhino-Rack vehicle guide lists together. A platform SKU on its own is not a complete fit result.

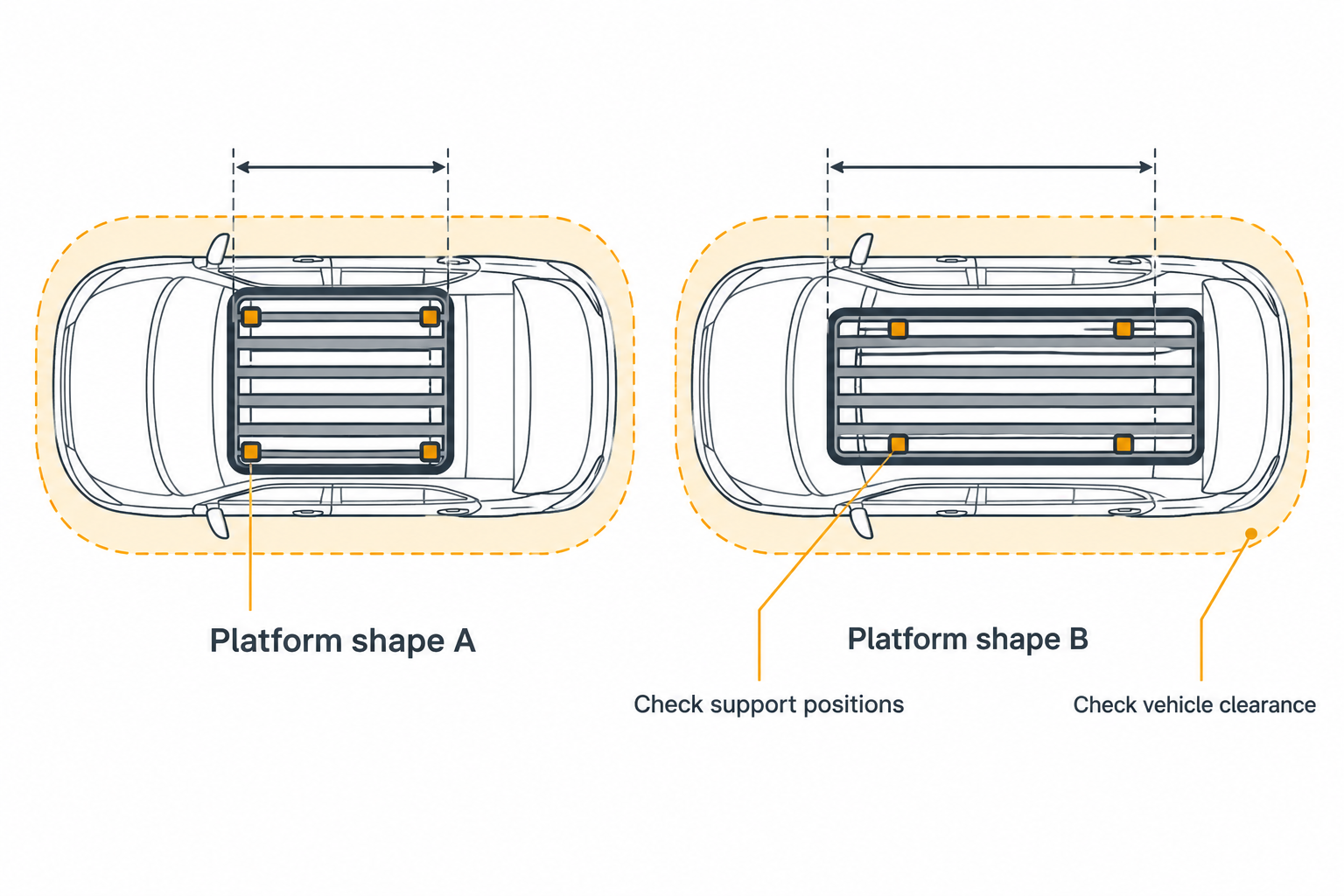

Compare the actual platform dimensions

Rhino-Rack’s US 62109F listing is a 51 by 49 inch platform and gives a platform mass of 32.6 pounds. The 62115F listing is 43 by 56 inches and gives a mass of 34.4 pounds. Choose dimensions by the accessory support locations, roof or bed footprint, hatch and door clearance, and total installed height—not by total area alone.

The same product page can contain vehicle examples without confirming every trim or mount combination. The 62109F listing identifies examples including some Toyota RAV4 and Tacoma configurations. Use Rhino-Rack’s current Fit My Vehicle selection, then confirm the exact platform, backbone or legs, hardware, and instructions for the year, trim, roof, and market. Do not infer fit for a neighboring model year or another roof configuration.

Select the mounting system with the platform

The Pioneer 6 fitting instructions direct owners to identify the vehicle and current fit-chart application, then follow the matching backbone or roof-ditch instructions and underbar or leg setup. Follow all steps and the correct document revision. Support position and platform overhang are configuration-specific; measurements for one backbone or vehicle do not define placement for another.

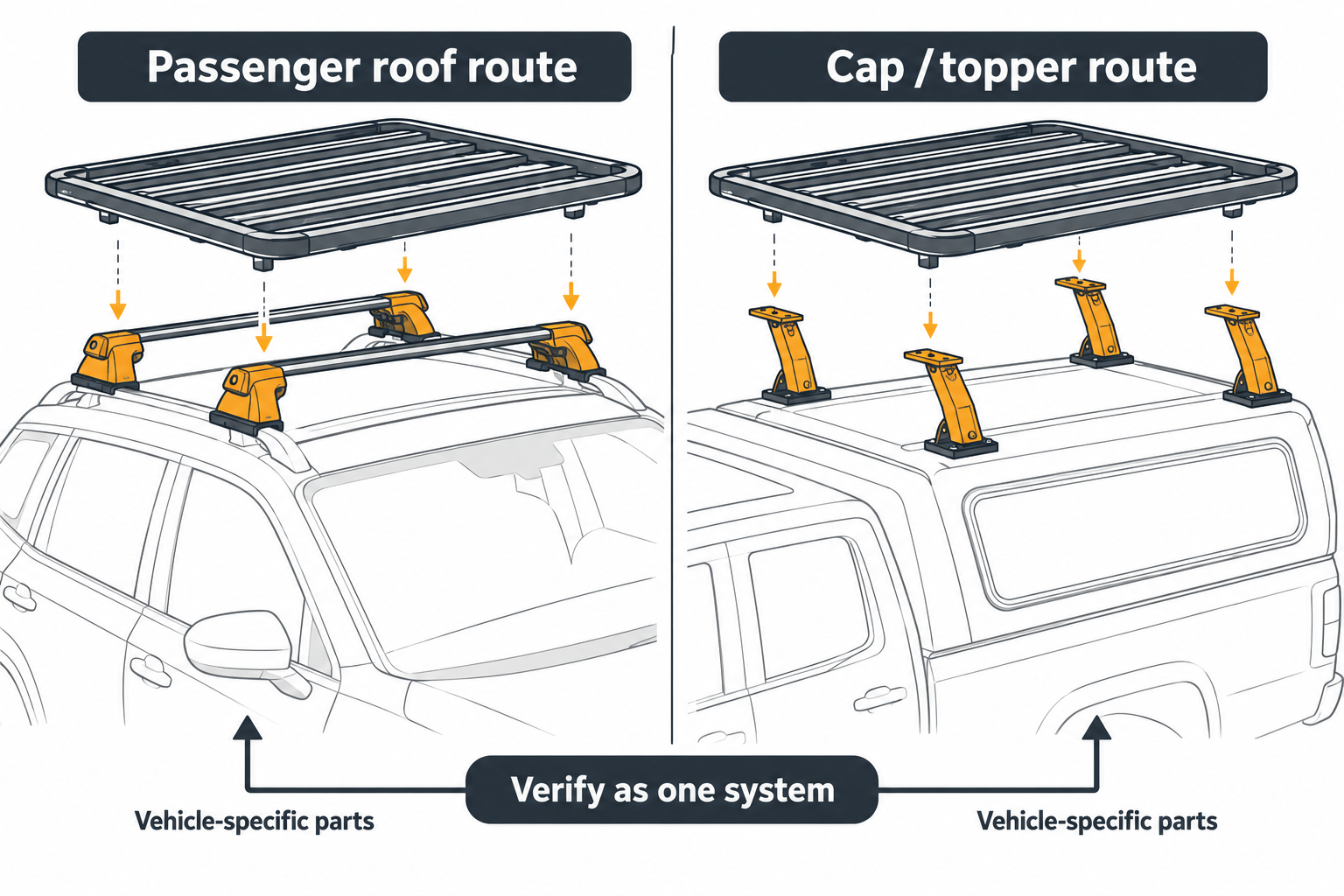

Pickup cap or topper applications use a different route from passenger-roof systems. Rhino-Rack’s JC-05420 listing names a Pioneer 6 platform with four RLT600 legs as a cap/topper system. That identifies a product composition, not universal compatibility with every cap, topper, or truck. Verify the cap or topper model, mounting points, legs, platform, and current instructions as one system.

For more detail, see the pickup cap and topper fitting guide.

Understand load and service instructions

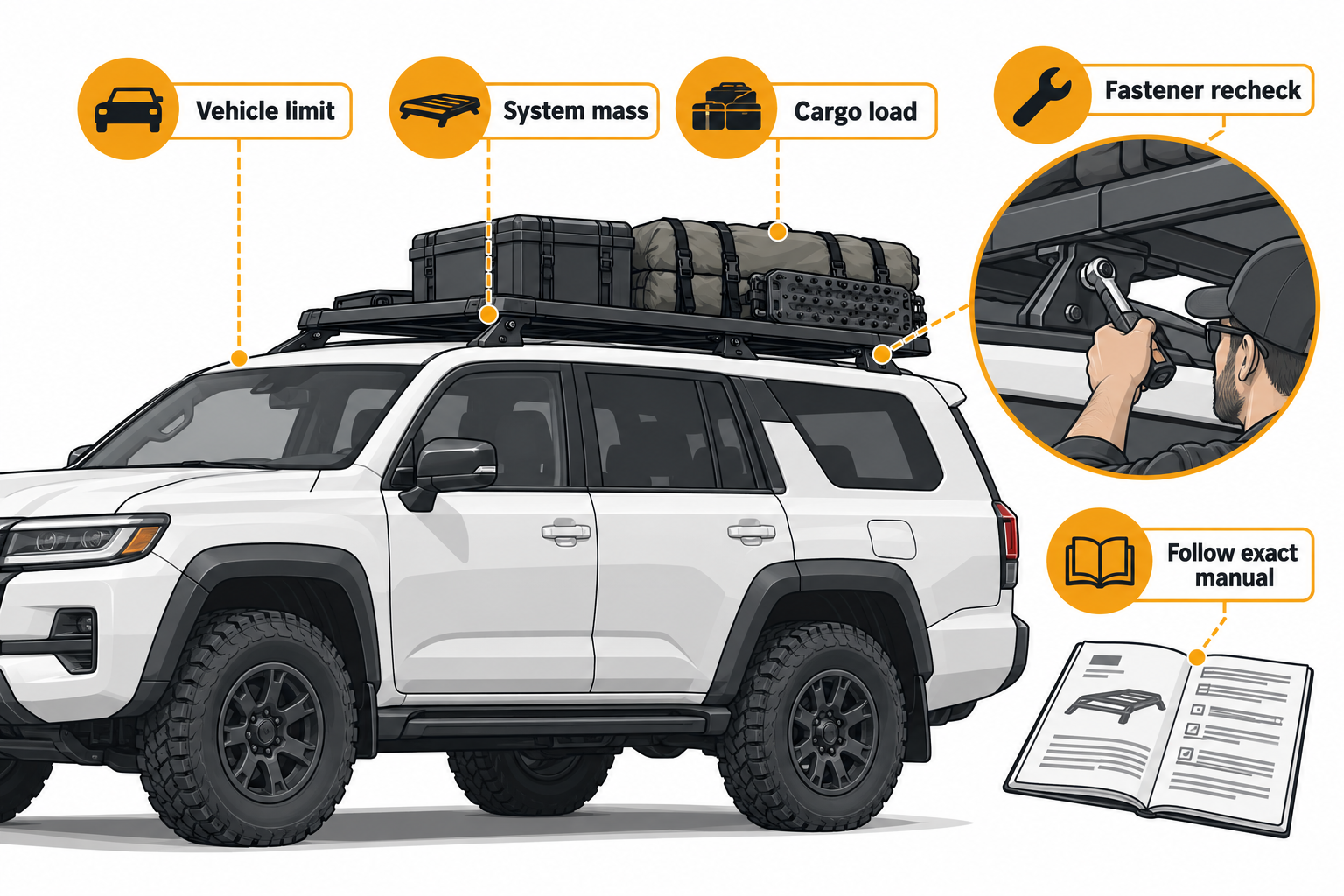

Keep product capacity separate from vehicle roof allowance. Rhino-Rack’s Pioneer 6 Series Flat Pack manual defines cargo load, system weight, and vehicle load as different quantities and directs owners to configuration-specific fit data and the vehicle handbook. It does not give a universal allowance for every Pioneer platform or vehicle. Include rack components in the way the applicable vehicle limit defines them and follow the lowest relevant documented limit.

That manual also gives product-specific fastener check guidance, including more frequent attention under some use conditions.

Apply the schedule in the instructions for the exact platform and fitting system rather than treating one manual as a rule for every Rhino-Rack generation or mounting route. Recheck after any refit and after travel when the product instructions require it.

Before loading, confirm the accessory channels and brackets, support positions, overhang, cargo securement, clearance, and height. Use current instructions for awnings, tents, lights, recovery or work gear, and confirm whether the maker allows the planned combination. If the exact mount or load result is missing, ask Rhino-Rack and the vehicle manufacturer instead of transferring a rating from another platform size or fit chart.

For the parts path below the platform, read vehicle-specific mounts, rails, legs, and backbones. For measuring accessory hardware, see platform size and channel interfaces.
